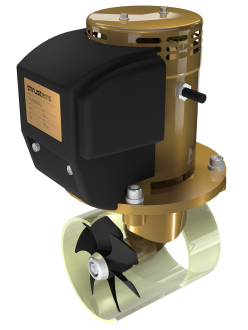

P55 12V / 150mm BOW THRUSTER

Operating time
12 minutes continuous operation
Typical Boat Size
8.5 - 12.5 / 28 - 41 (m / ft)
Output Power
3.0 kW
Weight
18.6kg
Propulsion System
Single 6-blade composite propeller
Tunnel Diameter
150 / 5.9 (mm / in)
DC system
12V
Thrust Force at 10.5V
55 / 121 (kgf / Lbs)
  • Made of seawater resistant bronze, all shaft and bearing surfaces are CNC machined to 2/1000mm accuracy
  • Its hydrodynamic shape ensures low water resistance and thus less cavitation
  • Heavy-duty seal designed for separation of two media, combining excellent contamination protection and supreme sealing performance
  • Crucial vibration damping capacity of the seal which reduces harmful propeller-generated vibrations
  • Easy to replace anti-electrolysis aluminium anode
  • Hardened spiro-conical gears, developed for us by leading German manufacturers. The precise elemental geometry leads to a quieter running of the gear sets and longer lifetime
  • This single propeller model incorporates excellent energy efficiency and unrivalled compact size, which makes it really suitable for boats in the 8.5-12.5m size range with limited installation space
  • Our skewback six-blade propeller generates less cavitation, which, in addition to the carefully chosen hydroacoustic design, results in great noise reductions
  • With blade tips swept back against the direction of rotation, while bending rearward in reference to the longitudinal axis, our propellers generate “ahead” thrust which almost coincides with “reverse” thrust,i.e. the thruster system is reliable for maneuvering in both directions
Click on the image for larger view

Voltage (V)

12 V

Thrust (kgf)

55kgf

Power (kW)

3

Motor, reversible D.C.

Yes

Internal tunnel diameter (mm)

150

Weight (kg)

18.6

Max. operating time (minutes)

12

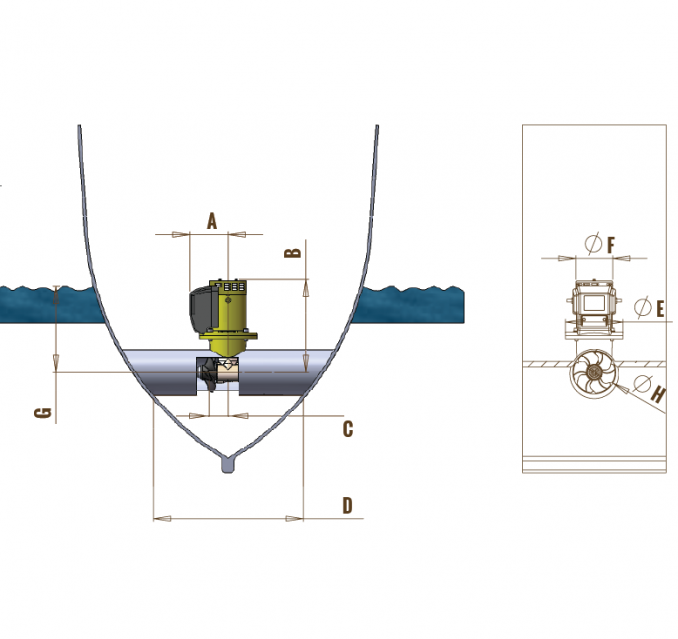

Size A in mm, see drawing

134

Size B in mm, see drawing

378

Size C in mm, see drawing

70

Size D min/max,mm

370/740

Size E in mm, see drawing

200

Size F, diameter in mm, see drawing

159

Size G min. in mm, see drawing

150

Size H, diameter in mm, see drawing

150
