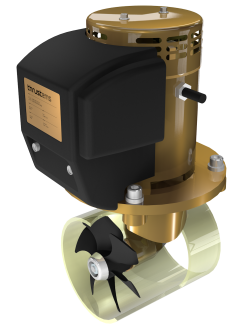

P30 12V / 125mm BOW THRUSTER
|
Operating time
12 minutes continuous operation
|
Typical boat size
5.5 - 8.5 / 18 - 28 (m / ft)
|
Output Power
1.5 kW
|
|
Weight
13.86kg
|
Propulsion System
Single 6-blade composite propeller
|
Tunnel Diameter
125 / 4.9 (mm / in)
|
|
DC system
12V
|
Thrust Force at 10.5V
30 / 66 (kgf / Lbs)
|
- Made of seawater resistant bronze, all shaft and bearing surfaces are CNC machined to 2/1000mm accuracy
- Its hydrodynamic shape ensures low water resistance and thus less cavitation
- Heavy-duty seal designed for separation of two media, combining excellent contamination protection and supreme sealing performance
- Hardened spiro-conical gears, developed for us by leading German manufacturers. The precise elemental geometry leads to a quieter running of the gear sets and longer lifetime
Click on the image for larger view
|
Voltage (V) |
12 V |
|
Thrust (kgf) |
30kgf |
|
Power (kW) |
1.5 |
|
Motor, reversible D.C. |
Yes |
|
Internal tunnel diameter (mm) |
125 |
|
Weight (kg) |
13.86 |
|
Max. operating time (minutes) |
12 |
|

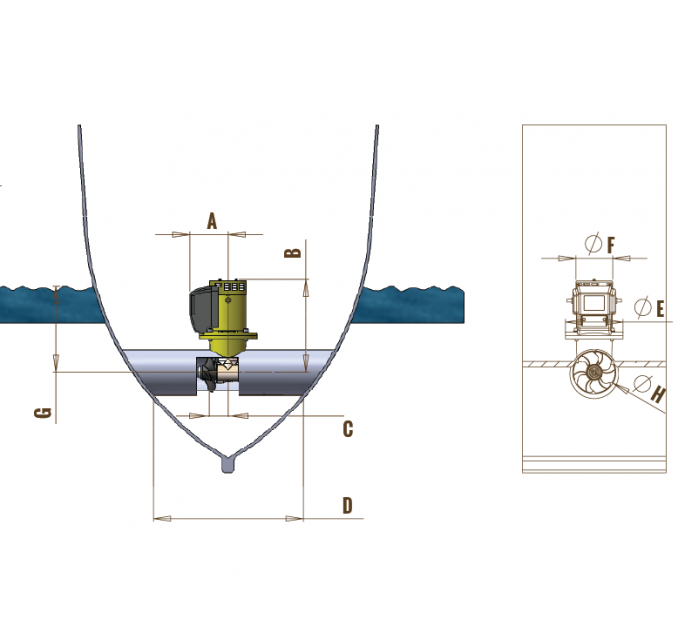

Size A in mm, see drawing |
134 |
|
Size B in mm, see drawing |
304 |
|
Size C in mm, see drawing |
53 |
|
Size D min,mm |
220 |
|
Size E in mm, see drawing |
200 |
|
Size F, diameter in mm, see drawing |
128 |
|
Size G min. in mm, see drawing |
125 |
|
Size H, diameter in mm, see drawing |
125 |
