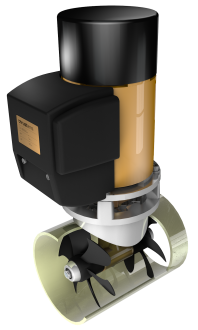

S90 12V and 24V / 185mm BOW THRUSTER

Operating time
3 minutes continuous operation
Typical Boat Size
11 - 15.5 / 36' - 51' (m / ft)
Output Power
6 kW
Weight
19.5kg
Propulsion System
Twin 6-blade composite propellers
Tunnel Diameter
185 / 7.3 (mm / in)
DC system
12V and 24V
Thrust Force at 10.5V
90 / 198 (kgf / Lbs)
  • Made of seawater resistant bronze, all shaft and bearing surfaces are CNC machined to 2/1000mm accuracy
  • Its hydrodynamic shape ensures low water resistance and thus less cavitation
  • Heavy-duty seal designed for separation of two media, combining excellent contamination protection and supreme sealing performance
  • Gear-damaging vibrations caused by the action of the twin propellers are minimized due to crucial vibration damping capacity of the seals
  • Easy to replace anti-electrolysis aluminium anode
  • Hardened spiro-conical gears, developed for us by leading German manufacturers. The precise elemental geometry leads to a quieter running of the gear sets and longer lifetime
  • EMS S90 represents the ultimate electrical maneuvering system for motor yachts and deep footed sailing yachts in the 12-16m size
  • This state-of-the-art twin propeller propulsion system generates greater thrust force in the same tunnel diameter than the preceding EMS S80 model
  • With blade tips swept back against the direction of rotation, while bending rearward in reference to the longitudinal axis, our propellers generate “ahead” thrust which almost coincides with “reverse” thrust, i.e. the thruster system is reliable for maneuvering in both directions
Click on the image for larger view

Voltage (V)

12 V-24V

Thrust (kgf)

90kgf

Power (kW)

6

Motor, reversible D.C.

Yes

Internal tunnel diameter (mm)

185

Weight (kg)

19.5

Max. operating time (minutes)

4

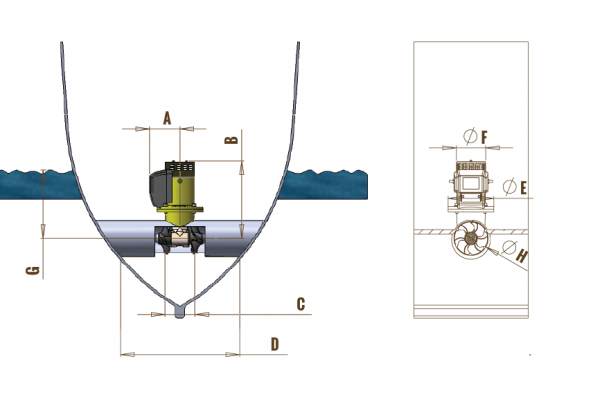

Size A in mm, see drawing

134

Size B in mm, see drawing

379

Size C in mm, see drawing

140

Size D min./max. in mm, see drawing

400/800

Size E in mm, see drawing

200

Size F, diameter in mm, see drawing

128

Size G min. in mm, see drawing

185

Size H, diameter in mm, see drawing

185
