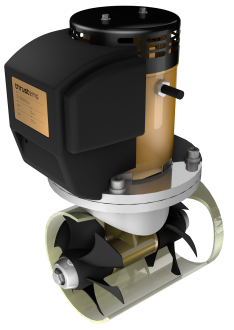

S60 12V / 150mm BOW THRUSTER

Operating time
3 minutes continuous operation
Typical Boat Size
8.5 - 12.5 / 28 - 41 (m / ft)
Output Power
3.0 kW
Weight
18.06kg
Propulsion System
Twin 6-blade composite propellers
Tunnel Diameter
150 / 5.9 (mm / in)
DC system
12V
Thrust Force at 10.5V
60 / 132 (kgf / Lbs

Gearleg:

  • Made of seawater resistant bronze, all shaft and bearing surfaces are CNC machined to 2/1000mm accuracy
  • Its hydrodynamic shape ensures low water resistance and thus less cavitation
  • Heavy-duty seal designed for separation of two media, combining excellent contamination protection and supreme sealing performance
  • Gear-damaging vibrations caused by the action of the twin propellers are minimized due to crucial vibration damping capacity of the seals
  • Easy to replace anti-electrolysis aluminium anode
  • Hardened spiro-conical gears, developed for us by leading German manufacturers. The precise elemental geometry leads to a quieter running of the gear sets and longer lifetime



Propulsion System:

  • State-of-the art twin propeller system which maximizes generated thrust even in the small 150mm tunnel size
  • The small tunnel diameter ensures perfect fit into the hull of relatively smaller boats
  • The small tunnel diameter, combined with the compact size of this twin propeller model makes it ideal for performance-oriented boat-owners with limited installation space
Click on the image for larger view

Voltage (V)

12 V

Thrust (kgf)

60kgf

Power (kW)

3

Motor, reversible D.C.

Yes

Internal tunnel diameter (mm)

150

Weight (kg)

18.06



Max. operating time (minutes)

4

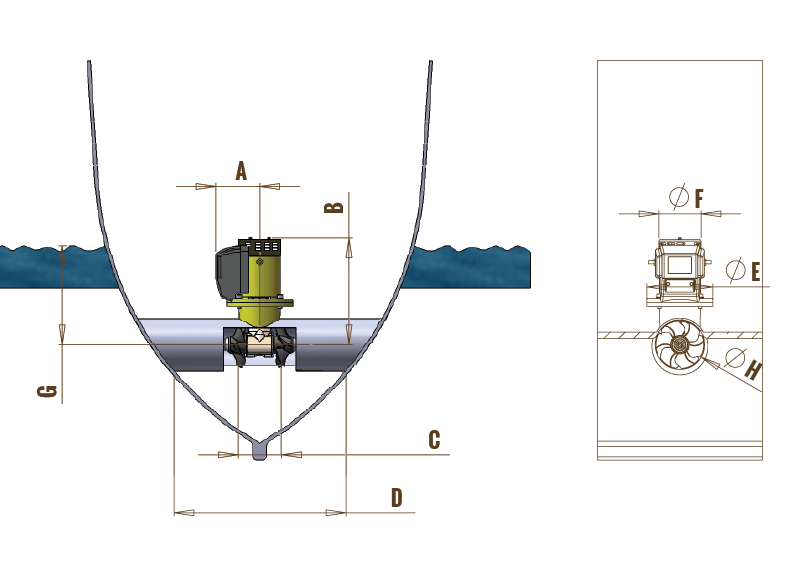

Size A in mm, see drawing

134

Size B in mm, see drawing

379

Size C in mm, see drawing

132

Size D min./max. in mm, see drawing

400/700

Size E in mm, see drawing

200

Size F, diameter in mm, see drawing

128

Size G min. in mm, see drawing

150

Size H, diameter in mm, see drawing

150
