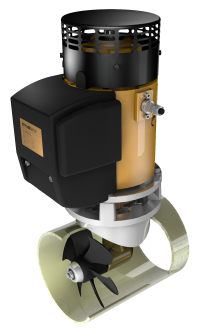

S150 24V / 250mm BOW THRUSTER

Operating Time
3 minutes continuous operation
Typical Boat Size
13 - 20 / 43' - 66' (m / ft)
Output Power
6.3 kW
Weight
38.8 kg
Propulsion System
Twin 5-blade composite propellers
Tunnel Diameter
250 / 9.8 (mm / in)
DC System
24V
Thrust Force at 10.5V
150 / 331 (kgf / Lbs)

Gearleg:

  • Made of seawater resistant bronze, all shaft and bearing surfaces are CNC machined to 2/1000mm accuracy
  • Its hydrodynamic shape ensures low water resistance and thus less cavitation
  • Heavy-duty seal designed for separation of two media, combining excellent contamination protection and supreme sealing performance
  • Crucial vibration damping capacity of the seal which reduces harmful propeller-generated vibrations
  • Easy to replace anti-electrolysis aluminium anode
  • Hardened spiro-conical gears, developed for us by leading German manufacturers. The precise elemental geometry leads to a quieter running of the gear sets and longer lifetime



Propulsion System:

  • EMS S150 is an excellent new entry in our product range. The system is a step up from the S125 model, offering utmost reliability in steering and docking for boats with size 13 - 20 meters (43' - 66').
  • Innovative skewback five-blade propellers are specially designed to minimize cavitation at the 250mm diameter, for optimal thrust and a more silent operation.
  • With blade tips swept back against the direction of rotation, while bending rearward in reference to the longitudinal axis, our propellers generate “ahead” thrust which almost coincides with “reverse” thrust, i.e. the thruster system is reliable for maneuvering in both directions
Click on the image for larger view

Voltage (V)

24

Thrust (kgf)

150

Power (kW)

6.3

Motor, reversible D.C.

Yes

Internal tunnel diameter (mm)

250

Weight (kg)

38.8

Max. operating time (minutes)

4

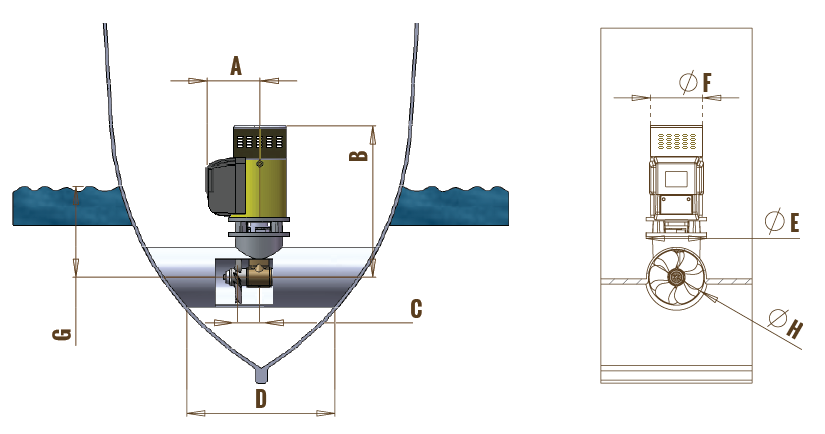

Size A in mm, see drawing

344

Size B in mm, see drawing

527

Size C in mm, see drawing

220

Size D min./max. in mm, see drawing

500/900

Size E in mm, see drawing

286

Size F, diameter in mm, see drawing

254

Size G min. in mm, see drawing

250

Size H, diameter in mm, see drawing

250
