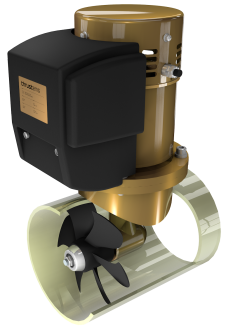

P80 12V and 24V / 185mm BOW THRUSTER

Operating time 12 minutes continuous operation	Typical Boat Size 10.5 - 15 / 34 - 49 (m / ft)	Output Power 4.0 kW
Weight 25kg	Propulsion System Single 6-blade composite propellers	Tunnel Diameter 185 / 7.3 (mm / in)
DC system 12V and 24V	Thrust Force at 10.5V and at 21V 80 / 176 (kgf / Lbs)

Made of seawater resistant bronze, all shaft and bearing surfaces are CNC machined to 2/1000mm accuracy
Its hydrodynamic shape ensures low water resistance and thus less cavitation
Heavy-duty seal designed for separation of two media, combining excellent contamination protection and supreme sealing performance
Crucial vibration damping capacity of the seal which reduces harmful propeller-generated vibrations
Easy to replace anti-electrolysis aluminium anode
Hardened spiro-conical gears, developed for us by leading German manufacturers. The precise elemental geometry leads to a quieter running of the gear sets and longer lifetime
As a result of considerable development work and numerous tests, we invented and now produce our unique skewback six-blade propeller. It is made of DuPont™ Delrin® acetal resin, a highly versatile engineering polymer
Our skewback six-blade propellers generate less cavitation, which, in addition to the carefully chosen hydroacoustic design, results in great noise reductions
With blade tips swept back against the direction of rotation, while bending rearward in reference to the longitudinal axis, our propellers generate “ahead” thrust which almost coincides with “reverse” thrust, i.e. the thruster system is reliable for maneuvering in both directions

Click on the image for larger view

Voltage (V)	12 V and 24 V
Thrust (kgf)	80kgf
Power (kW)	4
Motor, reversible D.C.	Yes
Internal tunnel diameter (mm)	185
Weight (kg)	25
Max. operating time (minutes)	12

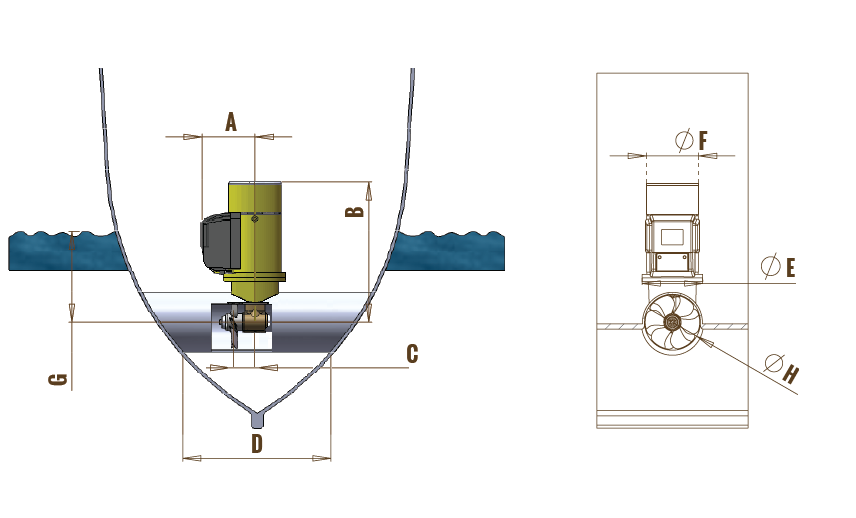

Size A in mm, see drawing	174
Size B in mm, see drawing	399
Size C in mm, see drawing	70
Size D min/max,mm	370/740
Size E in mm, see drawing	200
Size F, diameter in mm, see drawing	173
Size G min. in mm, see drawing	185
Size H, diameter in mm, see drawing	185
