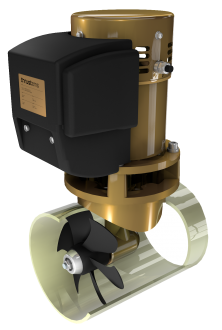

P125/250.24 V* BOW THRUSTER 125kgf

Operating Time
12 minutes continuous operation
Typical Boat Size
12 - 18 / 39' - 59' (m / ft)
Output Power
4.4 kW
Weight
29.9
Propulsion System
Single bronze propeller
Tunnel Diameter
250 / 9.8 (mm / in)
DC System
24V
Thrust Force at 21V
125 / 276 (kgf / Lbs)

Gearleg:

  • Made of seawater resistant bronze, all shaft and bearing surfaces are CNC machined to 2/1000mm accuracy
  • Its hydrodynamic shape ensures low water resistance and thus less cavitation
  • Heavy-duty seal designed for separation of two media, combining excellent contamination protection and supreme sealing performance
  • Crucial vibration damping capacity of the seal which reduces harmful propeller-generated vibrations
  • Easy to replace anti-electrolysis aluminium anode
  • Hardened spiro-conical gears, developed for us by leading German manufacturers. The precise elemental geometry leads to a quieter running of the gear sets and longer lifetime



Propulsion System:

  • EMS P125 is a new product in our thruster range. It utilizes a state-of-the-art DC electric motor and is suitable for boats with size 12 - 18 meters (39' - 59').
  • Our innovative bronze propellers are specially designed to minimize cavitation at the 250mm diameter, for optimal thrust and a more silent operation.
Click on the image for larger view

Voltage (V)

24 V

Thrust (kgf)

125kgf

Power (kW)

4.3

Motor, reversible D.C.

Yes

Internal tunnel diameter (mm)

250

Weight (kg)

29.9

Max. operating time (minutes)

12

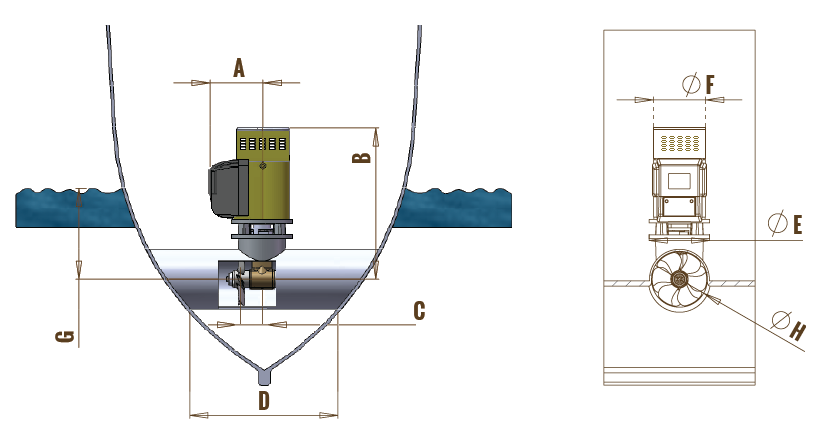

Size A in mm, see drawing

175

Size B in mm, see drawing

523

Size C in mm, see drawing

110

Size D min./max. in mm, see drawing

500/1000

Size E in mm, see drawing

232

Size F, diameter in mm, see drawing

160

Size G min. in mm, see drawing

250

Size H, diameter in mm, see drawing

250
