P100 12V and 24V / 185mm BOW THRUSTER

Operating time
12 minutes continuous operation
Typical Boat Size
11.5 - 16 / 38' - 52' (m / ft)
Output Power
5.5 kW
Weight
31kg
Propulsion System
Twin 6-blade composite propellers
Tunnel Diameter
185 / 7.3 (mm / in)
DC system
12V and 24V
Thrust Force at 10.5V and at 21V
100 / 220 (kgf / Lbs)
  • Made of seawater resistant bronze, all shaft and bearing surfaces are CNC machined to 2/1000mm accuracy
  • Its hydrodynamic shape ensures low water resistance and thus less cavitation
  • Heavy-duty seal designed for separation of two media, combining excellent contamination protection and supreme sealing performance
  • Gear-damaging vibrations caused by the action of the twin propellers are minimized due to crucial vibration damping capacity of the seals
  • Easy to replace anti-electrolysis aluminium anode
  • Hardened spiro-conical gears, developed for us by leading German manufacturers. The precise elemental geometry leads to a quieter running of the gear sets and longer lifetime
  • EMS P100 is probably our most versatile bow thruster system. Excellent choice for 12-15m motor yachts and deep footed sailing yachts, whose owners require utmost reliability in virtually all environmental situations, yet appropriate for vessels up to 16m in length
  • Utilizing the same mechanical components as the even more powerful EMS P120, its smaller DC motor ensures better energy efficiency translating into lower amp draws and more compact installation size
  • Our skewback six-blade propellers generate less cavitation, which, in addition to the carefully chosen hydroacoustic design, results in great noise reductions

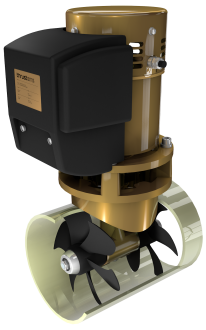

Click on the image for larger view
Voltage (V) 12V and 24V
Thrust (kgf) 100kgf
Power (kW) 5.5
Motor, reversible D.C. Yes
Internal tunnel diameter (mm) 185
Weight (kg) 31
Max. operating time (minutes) 12

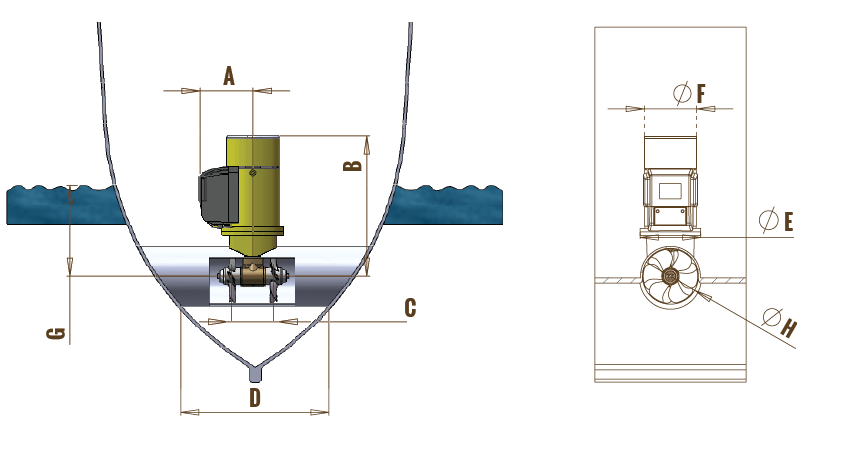

Size A in mm, see drawing 174
Size B in mm, see drawing 439
Size C in mm, see drawing 140
Size D min./max. in mm, see drawing 400/800
Size E in mm, see drawing 200
Size F, diameter in mm, see drawing 173
Size G min. in mm, see drawing 185
Size H, diameter in mm, see drawing 185
